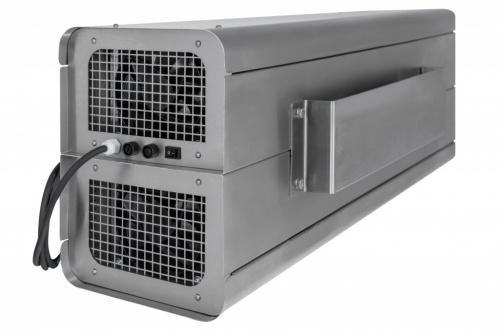

Industrial flow germicidal UV-C lamp GERMIPROTECT

TECHNICAL DATA:

supply voltage: 230 V 50 Hz
power consumption: 240 W
source of UV-C radiation: 4x55 W
useful lifetime of the bulbs: 9000 h
fan efficiency / device efficiency: 260 m³/h / 100 m³/h
cubage of disinfected room: 250 m³
anti-shock protection class: I
ingress protection code: IP 20
lamp body dimensions : 940 x 350 x 250 mm
total lamp mass: 24-29,5 kg (depends on mounting option)
casing material: stainless steel A4

Technical data sheet of GP 4x55 N

Technical data sheet of GP 4x55 S

Technical data sheet of GP 4x55 P

GERMIPROTECT MOUNTING TYPES

wall-mounted

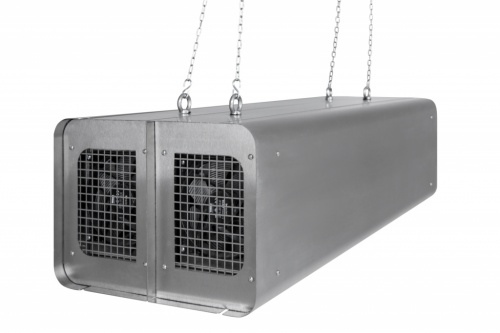

ceiling-mounted

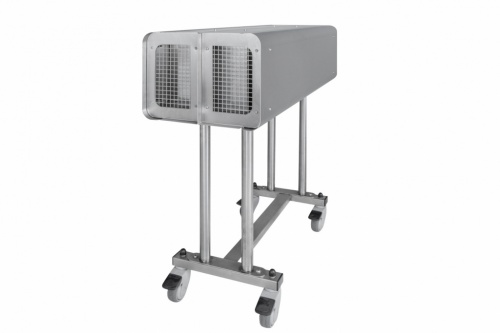

on mobile stand

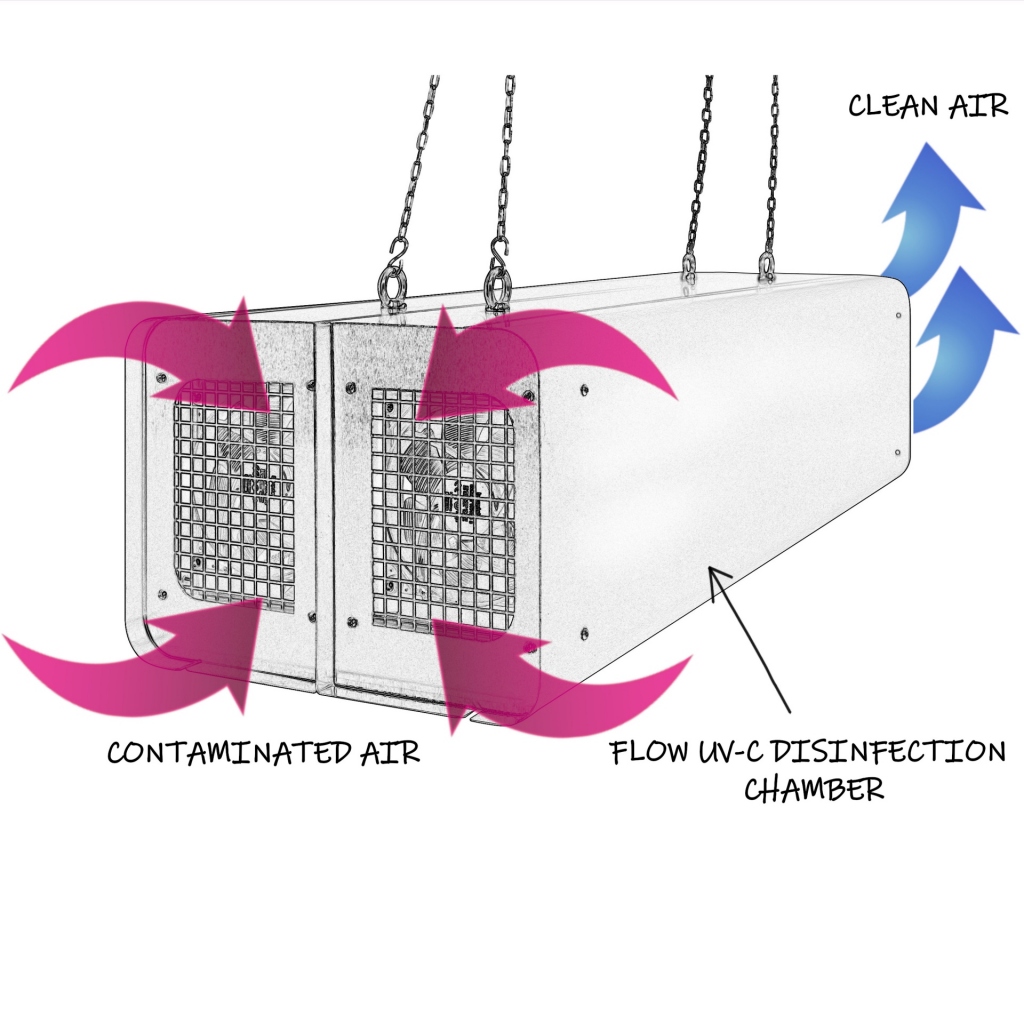

HOW DOES THE SINGLE PURPOSE UV-C FLOW GERMICIDAL LAMP WORK?

Contaminated air is drawn by a fan into the disinfection chamber. The UV-C radiation intensity and the time during which the air remains in the disinfection chamber are selected so that the air blown out from the lamp is practically free of microorganisms. It should also be noted that the forced flow of the air results in its smooth circulation and cause disinfection of the air in the whole room. This is a safe way to get rid of viruses, bacteria, molds and fungi from the air.

BENEFITS OF INDUSTRIAL FLOW GERMICIDAL UV-C LAMPS

Enable intensive air disinfection during personnel presence - entirely safe for people
Irreversibly destroy bacteria, viruses, fungi, moulds, yeasts and
other microorganisms present in the air
Reduce the possibility of secondary infections in the production
process
Create a kind of barrier effectively preventing from infections
spreading and developing
Microorganisms do not resist and immunize to UV-C irradiation
Four UV-C tubes of total power of 220 W and optimized air flow
maximize GERMIPROTECT effectiveness
Low maintenance costs
Easy installation and usage
