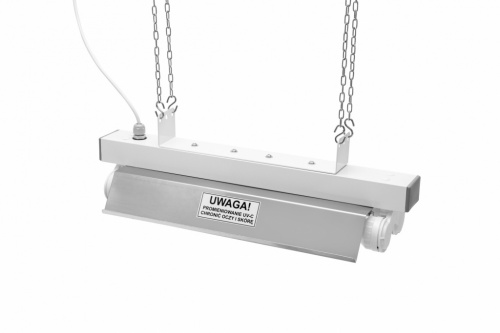

Germicidal lamp industrial use NBV 2x15 IP65
TECHNICAL DATA:
- supply voltage: 230 V 50 Hz
- power consumption: 40 W
- source of UV-C radiation: 2 x 15 W
- UV-C radiation intensity at the distance
of 1 m: 1 W/m2
- useful lifetime of the bulbs: 9000 h
- effective area of the lamp: spot
- exposure angle adjustment range: 150 °
- anti-shock protection class: I
- ingress protection code: IP 65
- operation mode: continuous
- lamp body dimensions: 520 x 220 x 160 mm
- total lamp mass: 2,15 kg
- wall holder / ceiling chains length 31 cm / 100 cm
A detailed description of the ways and methods of UV-C germicidal lamps use is contained in the user's manual provided with the product.
Selection of the power and number of NBV IP 65 series direct radiation- direct action UV-C germicidal lamps depends on many factors, such as:
ceiling height
shape of the room
reflectance of surfaces (walls) in the room
temperature
humidity
degree of dust pollution in the air
resistance of microbes
The multiplicity of parameters, which should be taken into account in selection of the lamps make it impossible to formulate a clear, simple way for determining precisely the recommended quantity of NBV IP 65 series direct radiation germicidal lamps in particular room.
From the practical point of view, we can assume that a sufficient degree of microbiological purity will be achieved by using*:
- the lamp 2 x 15 W spot
- the lamp 2 x 30 W on the surface up to 10-20 m2
- the lamp 2 x 36 W on the surface up to 20-25 m2
- the lamp 2 x 55 W on the surface up to 25-30 m2
- the lamp 2 x 75 W on the surface up to 30-40 m2
*in the interior height of 2.5m to 3.0m in the room conditions.
PRODUCT DESCRIPTION:
- universal, wall-mounted/ceiling-mounted (wall holder, ceiling chains on basic version )
- P- on mobile stand version ( additional fee)
- NBV IP 65 series germicidal lamps are designed to improve and maintenance the level of microbiological cleanness of the production rooms
- these devices emit short-wave band radiation UV-C of the wave 253.7 nm
- results of usage NBV IP 65 lamps: deactivation of the bacteria, viruses, moulds, mushrooms and all different microorganisms
- direct radiation germicidal lamps disinfect effectively the air and the surface
- the reflex is made of steel
- NBV IP 65 areas of application: general disinfection of the factory and machines
- general disinfection of rooms, in which the process of packing is being carried out, local disinfection of the dispenser and the feeder (production line) during packing, disinfection of packages - containers, mugs, lids, foil and production line
- the effectiveness of the disinfection by NBV IP 65 lamps is confirmed by the audits
- all required certificates
|
