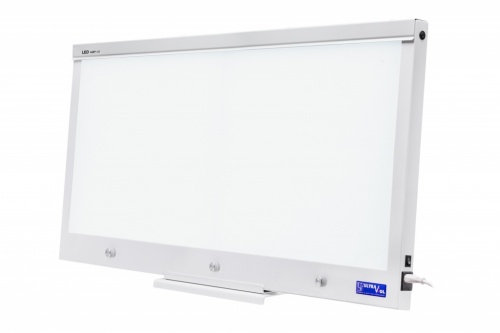

LED NGP 31 slim x-ray film viewer wall-mounted
TECHNICAL DATA:
- Power supply: 90-260V, 50-60 Hz
- Power consumption 180 W
- Luminance: 600 - 6000 cd/m² - 19.000,00 Lux
- Uniformity >95%
- Screen size: 1080 x 430 mm
- Frame qty.: 3
- Step-less luminance adjustment: 10-100%
- Colour temperature of the lamps light: > 6500 K
- Protection against electric shock: I
- IP code: IP 20
- External dimensions: 1160 x 35 x 520 mm
- Weight: 12.0 kg
- Film holder switch, activated switch
- Table top stand as a variant - additional base

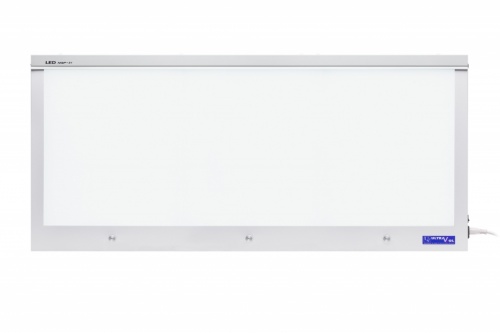

Front view
Side view
Table top stand as a variant - additional base
Ultra-Viol LED X-ray film viewers are very functional. They perfectly fulfill their functions in operating rooms, treatment rooms, offices specializing in mammography diagnostics, and many other health care facilities. Because part of our offer includes only the highest quality equipment, our cooperation with partners is always long-term and fruitful.
LED NGP Slim is a proposition made in LED technology. The attractive design means that this type of X-ray film viewers significantly improve the aesthetics of any office arrangement. Among the wide range of products, you can choose models designed to be placed on a desk or mounted on a wall. Such a diverse range means that every customer will find the perfect solution for themselves.
IMPORTANT DETAILS:
- Made in Poland
- CE 93/42/EEC
- Modern UltraSlim design
- High luminance 6000 cd/m² ( 19.000,00 Lux)
- Superior light uniformity more than 95%
- film holder switch FAS
- Depth of the viewer only 35 mm
- Light sources made in LED technology, life time 50.000 working hours
- Colour temperature of the light >6500 K
- Front panel made of white acrylic sheet of 3 mm thickness assures high uniformity of screen luminance
- Viewers are made according to European directives, all required declarations are available.
- Energy efficient - only 45% of the standard power consumption
|
