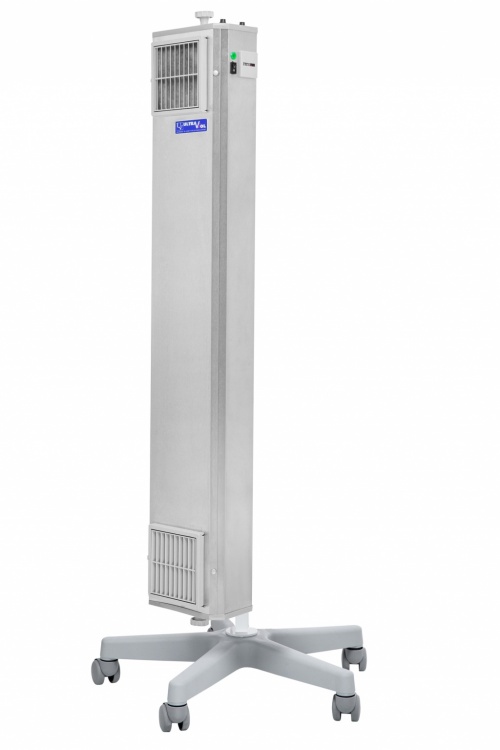

NBVE 110 PL [on mobile stand] single purpose UV-C flow germicidal lamp with working time counter
TECHNICAL DATA:
- supply voltage: 230 V 50 Hz
- power consumption: 115 W (energy saving)
- source of UV-C radiation: 2x55 W
- useful lifetime of the bulbs: 9000 h
- fan efficiency: 199 m3/h
- cubage of disinfected room: 45-90 m3
- effective area of the lamp: 18-36 m2
- anti-shock protection class: I
- ingress protection code: IP 20
- lamp body dimensions: 215 x 130 x 1125 mm
- overall dimensions: 600 x 600 x 1300 mm
- total lamp mass: 11,0 kg

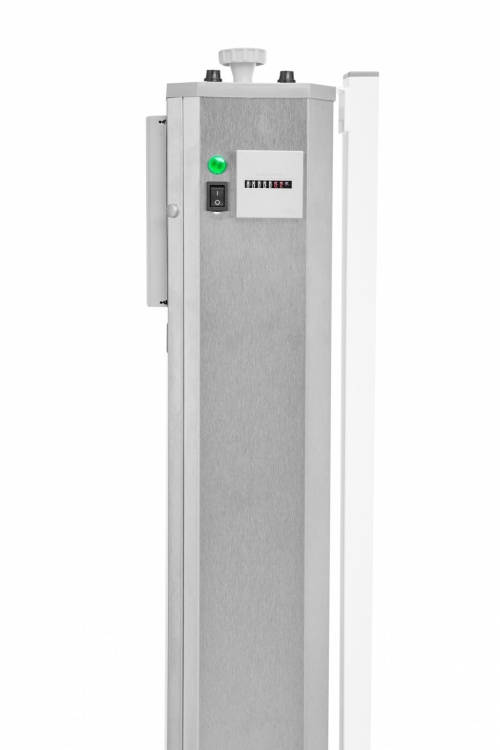

- working time counter: YES, inductive mechanical counter with display about indications with exactitude to 1 hour
Intended use of NBVE 110 PL:
The use of energy-efficient UV-C flow germicidal lamps NBVE series is one of the most effective methods of air disinfection. NBVE series germicidal lamps was designed with the greatest care for people's safety. Air disinfection with UV-C rays tekes place inside flow disinfection chamber. Before the air enters the disinfection it is pre-cleaned by filter, which stops dust and other contaminants. Harmful UV-C radiation is sealed closed and does not escape from the disinfection chamber, therefore the use of lamps during the presence of patients and personnel is safe. The devices emit UV-C radiation with a wavelength of 253.7 nm. This radiation has the strongest biocidal properties and irreversibly inactivates bacteria, viruses, molds, fungi and all other microorganisms.
Due to their high efficiency, the energy-saving bactericidal lamps NBVE series are used wherever sterility is required and the quality of service and safety of patients and staff depends on the microbiological purity.
Areas of application include:
- hospitals (operating theaters, treatment rooms, dressing rooms, wards, emergency room, isolation, sluice rooms, etc.)
- clinics (surgeries and treatment rooms)
- laboratories,
- pharmacies,
- pharmaceutical industry, food-processing, cosmetic industry,
- HORECA (hotels, restaurants, catering, cafes, etc.)
- nurseries, kindergartens, schools.
PRODUCT DESCRIPTION:
- mounting type: P - on mobile stand
- L - inductive mechanical working time counter with display about indications with exactitude to 1 hour
- low power consumption
- forced air flow through the UV-C disinfection chamber
- UV-C flow germicidal lamp designed for disinfection of air in the presence of staff and patients
- NBVE series germicidal lamps are designed to improve and maintenance the level of microbiological cleanness of the rooms
- guaranteed consistently high level of air disinfection
- these devices emit short-wave band radiation UV-C of the wave 253.7 nm
- results of usage NBVE lamps: deactivation of the bacteria, viruses, moulds, mushrooms and all different microorganisms
- NBVE areas of application: operating blocks, surgeries, dressing studies, patient halls, outpatient clinics, operating theaters, wards, laboratories, emergency room, waiting rooms, drugstores, in the pharmaceutical industry, food and cosmetic industry and any places where there are large concentrations of people. Generally, wherever a high degree of microbiological purity is required and at the same time where people have to stay.
- type of housing: stainless steel, easy to clean and disinfect
- sealed device ensures complete safety of personnel
- replacement of the air filter: very easy
- the effectiveness of the disinfection by NBVE lamps is confirmed by the audits
- all required certificates
|
![]()
Filter cartridge exchange in NBVE lamp step 1
![]()
Filter cartridge exchange in NBVE lamp step 2
![]()
Filter cartridge exchange in NBVE lamp step 3
